AT070TN93 V.3 7.0 Inch 800*480 LCD Screen for Digital Photo Frame
AT070TN93 V.3 Product details :
| Brand | Chimei Innolux |
| Model P/N | AT070TN93 V.3 |
| Diagonal Size | 7.0" |
| Panel Type | a-Si TFT-LCD, Assembly |
| Resolution | 800(RGB)×480, WVGA 134PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 154.08(W)×85.92(H) mm |
| Bezel Opening | - |
| Outline Dim. | 184.4(W)×116.85(H) ×7.95(D) mm |
| Treatment | - |
| Luminance | 320 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 10/15 (Typ.)(Tr/Td) |
| Viewing Angle | 70/70/50/70 (Typ.)(CR≥10) |
| Operating Mode | - |
| Support Color | 16.7M 75% NTSC |
| Light Source | WLED , 20K hours , Without Driver |
| Panel Weight | 234g (Typ.) |
| Designed For | Digital Photo Frame |
| Frame Rate | 60Hz |
| Touch Panel | PCAP, I²C |
| Signal Interface | Parallel RGB (1 ch, 8-bit) , 50 pins FPC |
| Input Voltage | 3.3/10.4/16.0/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
| Environment | Operating Temp.: -10 ~ 60 °C ; Storage Temp.: -20 ~ 70 °C |
AT070TN93 V.3 NOTE:
1.Before you place your order, if you are not sure which screen model you need, please be sure to contact customer service and we will get back to you promptly.
2.We may ship a compatible screen model according to the inventory. If you need to specify the model, please leave a message or contact customer service.
•3-->The LCD model name in your hand, such as: AT070TN93 V.3
•4-->Your notebook computer name, such as: brand,specific model
•5-->Send the above information to us, we will reply you with fast and correct transaction within 24 hours, thank you!
AT070TN93 V.3 Note:
1: This product is a display screen, which needs to be installed by professionals. Please purchase with caution, thank you!
2: Purchasing this product, according to the buyer's choice of logistics, we will send it out within 48 hours, if there is a delay, please wait for the tracking information to prevail!
3: After receiving the product, if there is a problem, please contact customer service to solve it!
AT070TN93 V.3 Shipment:
When you place an order, please choose a shipping method and pay for the order including the shipping fee. We will send the items within 3 days once your payment is completed.We do not uarantee delivery time on all international shipments due to differences in customs clearing times in individual countries, which may affect how quickly your product is inspected.
AT070TN93 V.3 About Shipping:
We will test them strictly before shipping.
We will ship it in 3 working days after your paying.Buyer is responsible for customs duty fee.
It usually takes 10-45 business days for international shipping.If you don't receive the parcel for a long time,pls contact with us.
AT070TN93 V.3 FAQ:
Q: If I place order now,when will you ship the goods of AT070TN93 V.3 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can I pay my order of AT070TN93 V.3 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can You declare my order of AT070TN93 V.3 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long will I receive my goods AT070TN93 V.3 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
AT070TN93 V.3 Shippment & Packing
|
|

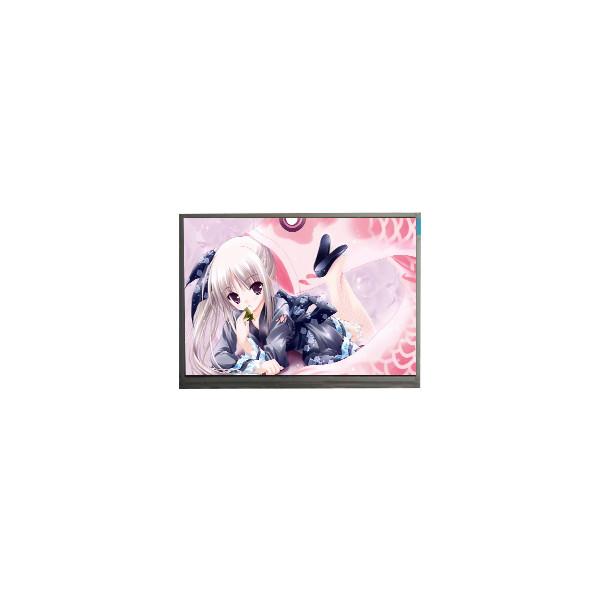

AT070TN93 V.3 7.0 Inch 800*480 LCD Screen for Digital Photo Frame Images
|
