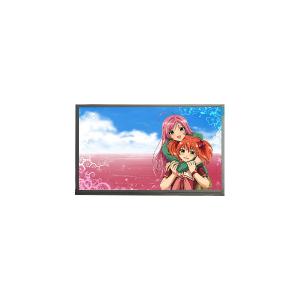

LQ035Q1DG04 320*240 Touch LCD Screen for Portable Navigation

Name: LQ035Q1DG04 320240 Touch LCD Screen for Portable Navigation
Brand: Sharp
Price: 1 USD

Wholesale LQ035Q1DG04 320*240 Touch LCD Screen for Portable Navigation from china suppliers

Brand Name : Sharp

Model Number : LQ035Q1DG04

Place of Origin : China

MOQ : 1 pcs

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 100000 Unit/Units per Month

Delivery Time : 7 Days

Packaging Details : Original packaging/conventional packaging box

Model Name : LQ035Q1DG04

Diagonal Size : 3.5"

Panel Type : a-Si TFT-LCD, LCM

Resolution : 320(RGB)×240, QVGA 115PPI

Pixel Format : RGB Vertical Stripe

Active Area : 70.56(W)×52.92(H) mm

Used for : Portable Navigation

Display Colors : 16.7M 50%NTSC

Contact Now

LQ035Q1DG04 320*240 Touch LCD Screen for Portable Navigation

LQ035Q1DG04 LCD Panel Product details :

Brand	Sharp
Model P/N	LQ035Q1DG04
Diagonal Size	3.5"
Panel Type	a-Si TFT-LCD, LCM
Resolution	320(RGB)×240, QVGA 115PPI
Pixel Format	RGB Vertical Stripe
Active Area	70.56(W)×52.92(H) mm
Bezel Opening	72.1(W)×54.63(H) mm
Outline Size	76.9(W)×63.9(H)×4.45(D) mm
Surface	Antiglare, Hard coating (2H)
Brightness	320 cd/m² (Typ.)
Contrast Ratio	300:1 (Typ.) (TM)
Viewing Angle	60/60/40/60 (Typ.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
Best View on	-
Response Time	30/30 (Typ.)(Tr/Td)
Display Colors	16.7M 50%NTSC
Lamp Type	6S1PWLED, Without Driver
Frequency	60Hz
Touch Screen	4-wire Resistive Touch
Panel Weight	41.0g
Application	Portable Navigation
Signal Interface	Parallel RGB (1 ch, 8-bit) + SPI, 50 pinsFPC
Input Voltage	3.3/3.3V (Typ.)(VCI/VDDIO)
Environment	Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C
LQ035Q1DG04 320*240 Touch LCD Screen for Portable Navigation

LQ035Q1DG04 LCD Panel Attention:

Before placing an order for purchase, the buyer must confirm the screen model needs.

If you are not sure about the model of the screen, please contact us at the first time.

We will distinguish and prevent you from buying the wrong screen.

If the buyer's mistake let screen make the screen unusable, all the freight incurred shall be borne by the buyer.

LQ035Q1DG04 LCD Panel Shipping and Package :

LQ035Q1DG04 LCD Panel Shipping Information :

Shipping Agency: We utilize a reputable and efficient shipping agency known for its reliability and professionalism. Our goal is to ensure fast and secure delivery of your order.

Delivery Time: Typically, our standard delivery time ranges from 3 to 7 business days for shipments worldwide. This timeframe is subject to regional variations and potential delays beyond our control.

Additional Charges: Please note that import duties, taxes, and other related charges are not included in the item price or shipping charges. These charges, if applicable, are the responsibility of the buyer and may be assessed upon delivery by customs authorities in the destination country.

LQ035Q1DG04 LCD Panel Return Note :

Model Confirmation: When placing an order for our LCD screen, please ensure that the model number matches exactly with the one you intend to replace. This is crucial to avoid purchasing the wrong product that may not function properly in your device.

Installation Caution: Before confirming that the screen does not work properly, refrain from using adhesive to attach our screen to your equipment. If adhesive is applied and the screen is installed, we regret that we cannot accept returns or provide refunds. This precaution is essential to ensure that our products remain in their original condition for potential troubleshooting or returns.

LQ035Q1DG04 LCD Panel FAQ :

Q: Do you accept sample orders of LQ035Q1DG04 ?

A: Of course!sample order is welcome !

Q: Can you give me a discount if I need a large quantity of LQ035Q1DG04 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Can I pay my order of LQ035Q1DG04 via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: How long will I receive my goods LQ035Q1DG04 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

LQ035Q1DG04 320*240 Touch LCD Screen for Portable Navigation Images
